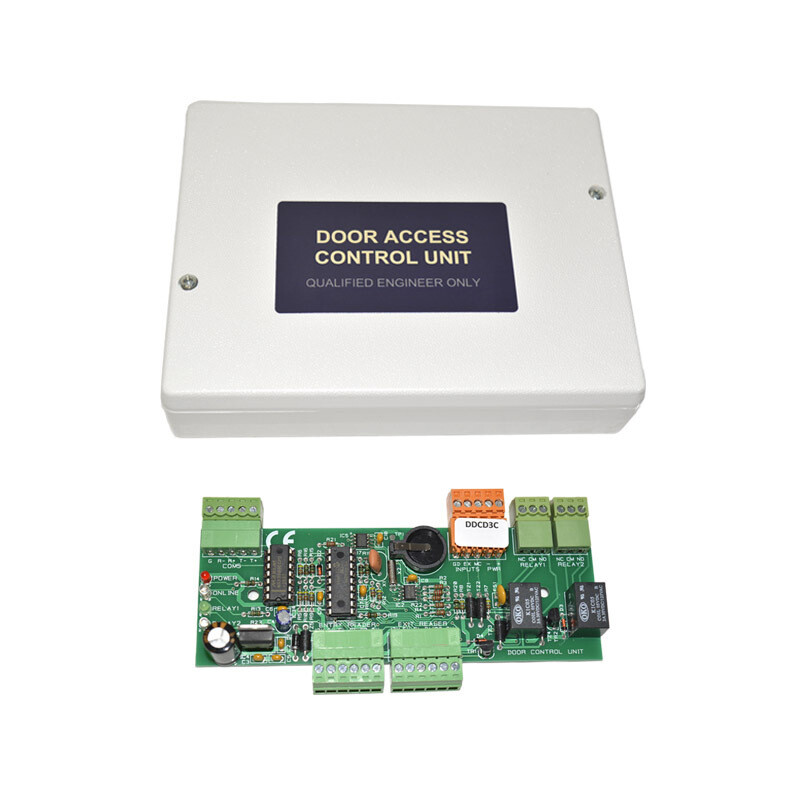

Our interconnecting single door compact access control door control unit. Control 1 or 2 card readers per door for entry or entry and exit means. Cable networked with our USB-RS485 and / or IP-RS485 Adapters.

Includes a free digitally delivered copy of our comprehensive MFLEX™ Access Control Software.

Features
- 4000 Users, 128 Doors & 1100 Offline Event Storage
- Web Browser Based Administration & Monitoring
- Card Only or Card + PIN Operation
- Access, Time Clocking & Roll Call Reports
- Offline or Online Operation
- 2 Industry Standard Wiegand Reader Inputs (Entry / Exit)
- Exit Request Button Input
- Magnetic Door Contact Input
- Timed Lock Relay
- Timed Local Alarm Relay
- Door Forced & Door Held Open Alarms
- RS485 Cabled Multi-drop Door Networking
- IP-485 Networking
- USB-485 Networking
- Compact Housing (122mm x 156mm x 32mm)
- 12 to 16VDC Low Power Operation (150mA)
